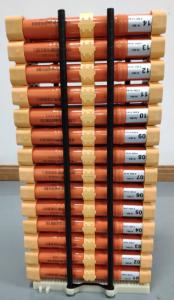

Hyno Energy Toyota Prius Hybrid Battery Replacement For 3rd Gen 2010 - 2015

Hyno Energy. Wholesales of Hybrid Battery Replacement For Toyota Prius 3rd Gen. (2010-2015). 6500mAh 201.6V

If the battery has not been replaced and data stream shows wandering voltage, then it’s time to dig into the battery case. On a Prius, there are several visual clues that can lead to the replacement of the battery. Disable the high voltage circuit, then take the top of the battery case off and look at all the battery blocks—if you see any that are weeping a clear or blue liquid, this is electrolyte from the battery cells. The electrolyte in a Prius battery is COH (Potassium Hydroxide) and when it leaks out, it’s as conductive as a pool of liquid copper, so be careful when you see it.

General Cautions:

1. When two or more similar batteries are used together, the state must be the same.
2. Stop using the new battery immediately if it is found to be alkaline, fever or other abnormalities occur. Please wipe it with a soft dry cloth if there is dirt in the battery. Prevent battery from contact with equipment, leakage or useless.
3. Batteries must be stored or used in a specified, dry, heat dissipating environment. (According to the specification, the long-term storage temperature of the battery is -20℃~35℃). Storage or use of batteries should be placed in a special area. No other articles around, especially flammable or explosive articles.

Technical Specification

Cautions of Battery Pack Transportation and Storage

1. Avoid violent vibration and external force impact, don’t cast, roll, invert, extrude, and stack too high during handling and transportation of battery pack.
2. Protect the battery pack from rain during the transportation, and the ambient temperature is not over 55℃.
3. Store the battery pack in a cool and dry place and the temperature range is 5-25℃ when you are not using it.

Maintenance regulations (Maintain the whole battery pack, and cool with a fan during the charge and discharge process)

The SOC of our battery pack is 60%~80% when leaving the factory, in long-term storage, battery should be stored in a charged state (usually the SOC is 80%). Have a charge and discharge maintenance to battery pack when the storage time is over 6 months or battery module’s voltage is 15V,to prevent the battery performance’s decline caused by the self-discharge. The maintenance regulations are as follows:

1. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
2. Interval: 30 minutes
3. Charge: 1.3A charge for 5 hours (voltage ≥ 306V, -ΔV ≥ 0.2V and temperature ≥50℃)
4. Interval: 1hours
5. Discharge: 2A discharge to 204V (that is to say: single cell 1.0V)
6. Interval: 30 minutes
7. Charge: 2A charge for 2.4 hours

Installation Cautions of battery pack

Notes: Installing this product should only be attempted by a qualified technician, the voltage of the battery pack is very high, which has the shock hazards, so when installing the battery pack, you should wear insulating gloves and use insulated handle tools.

1. Please operate according to assembly manual during the installation of Prius battery pack.
2. Do not mix our battery modules with those of other manufacturers, or new battery modules in use with semi-used battery modules, and don’t mix battery modules within a battery pack with those in other battery pack.
3. Don’t twist and bend battery modules and accessories when assembling battery pack.
4. Don’t connect the anode and cathode of battery module in reverse when assembling battery pack, to prevent short circuits.
5. Fasten bolts and nuts with appropriate torque, avoid loose connection or damaging other accessories with too big torque.
